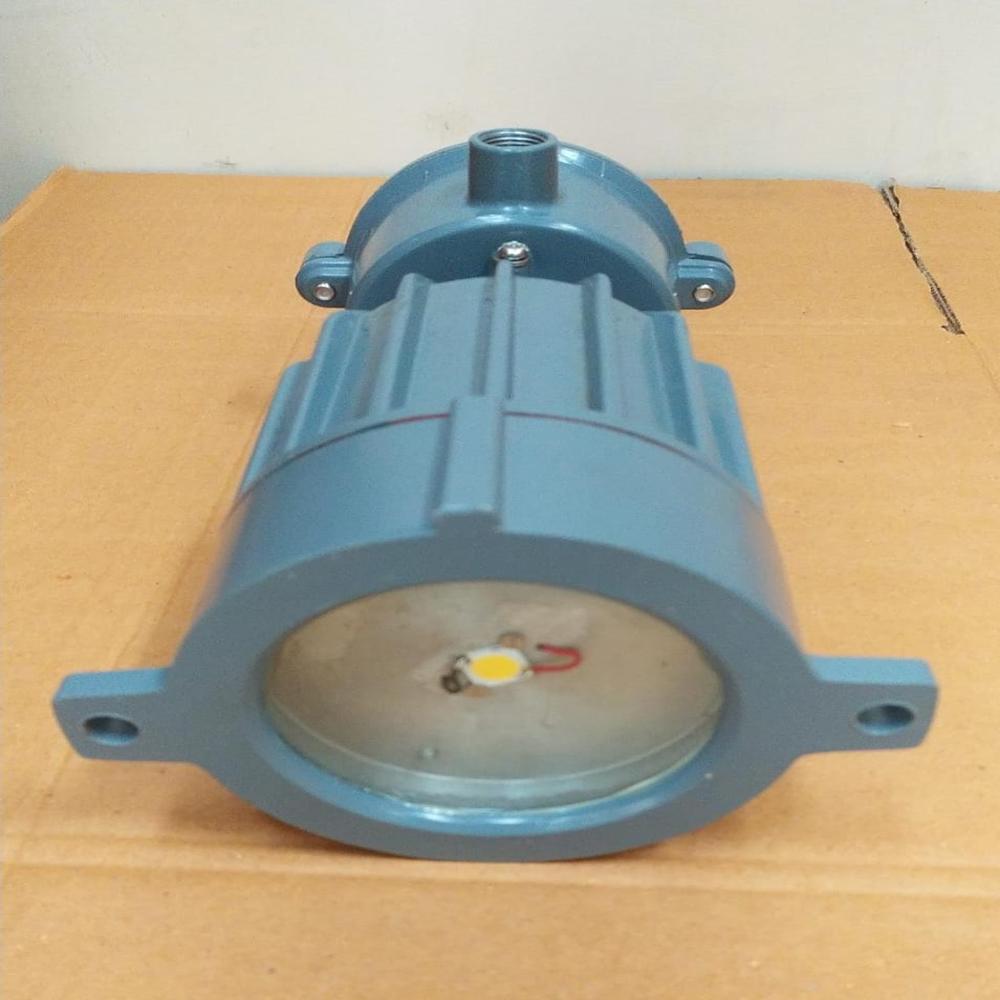

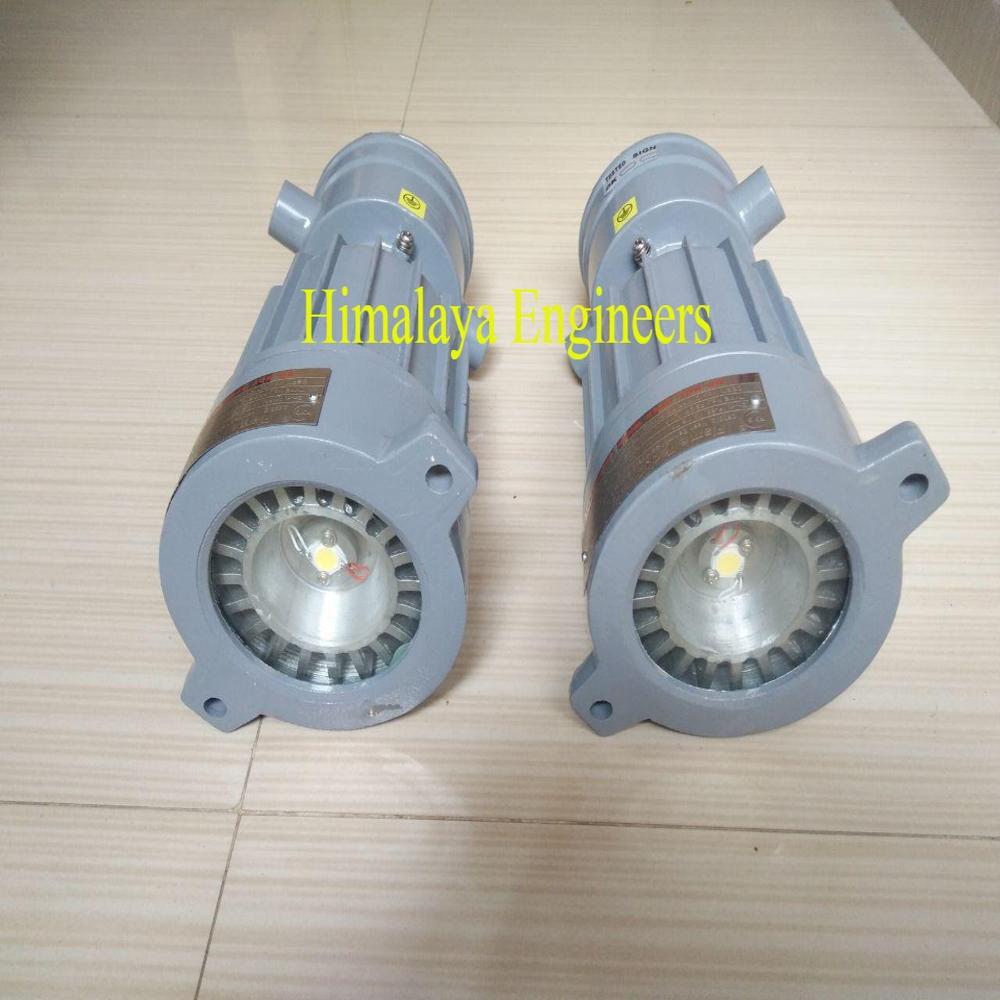

Flameproof Reactor Vessel Lamp Fitting

Name: Flameproof Reactor Vessel Lamp Fitting
Brand: HIMALAYA ENGINEERS
Price: 3750.0 INR
Availability: InStock

Price 3750.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Flameproof Reactor Vessel Lamp Fitting Specification

Cabinet Material
Aluminium Alloy

Rated Current
Up to 1A

Rated Operation Voltage
Up to 240V AC

Protection Class
Zone 1 & Zone 2, IIA, IIB, IIC Gas Groups

Rated Insulation Voltage
400V AC

Protection Level
Flameproof, Weatherproof

Operating Voltage
110V/220V/240V AC

Base Material
Aluminium Alloy

Features
High impact resistance, chemical resistant, easy lamp replacement, maintenance-free operation

Way
Single-way

Cover Material
Toughened Glass Viewing Window with Aluminium Flange

Connectivity Type
Cable Glands (PG13.5/PG16 or as per drawing)

Cooling System
Natural Air Cooled

Panel Type
No Panel - Direct Mounting Type

Components
Lamp Fitting body, Toughened Glass, Gasket, Terminals, Earthing Bolt, Mounting Flange

Current Rating
Up to 1A

Thickness
3-5 mm (Body Wall)

Control System
Manual or Remote Switch Operation (Switch not included)

Product Type
Flameproof Reactor Vessel Lamp Fitting

Material
Aluminium Alloy (LM-6 or equivalent)

Surface Finish
Corrosion Resistant Smooth Finish

Standard
IS/IEC 60079-1 & IS/IEC 60079-7

Surface Color
Epoxy Powder Coated Grey

Rated Voltage
110V/220V/240V AC

Frequency (MHz)
50-60 Hz

Maximum Output Current
Up to 1A (Depending on lamp used)

Dimension (L*W*H)
Custom/As Required (Typically DN80 Flange with Body Length 200-300mm)

Application
Illuminating reactor vessel interiors in hazardous (Zone 1 & 2) areas in chemical, pharmaceutical, and paint industries

Lamp Holder Type
E27 or B22 as per requirement

Glass Thickness
8mm to 12mm (Toughened)

Operating Temperature Range
-20C to +60C

Mounting Arrangement
Flanged, Threaded or Customized as per vessel

Lamp Mounting
Top/Side Mounting as per order

Earthing
Provided with external and internal earth bolts

Max Lamp Wattage
Up to 100W (LED/Incandescent)

Cable Entry
Single or Double, as specified

Ingress Protection
IP65/IP66 Certified

Gasket Material
Neoprene or Silicone for Weatherproofing

Flameproof Reactor Vessel Lamp Fitting Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

About Flameproof Reactor Vessel Lamp Fitting

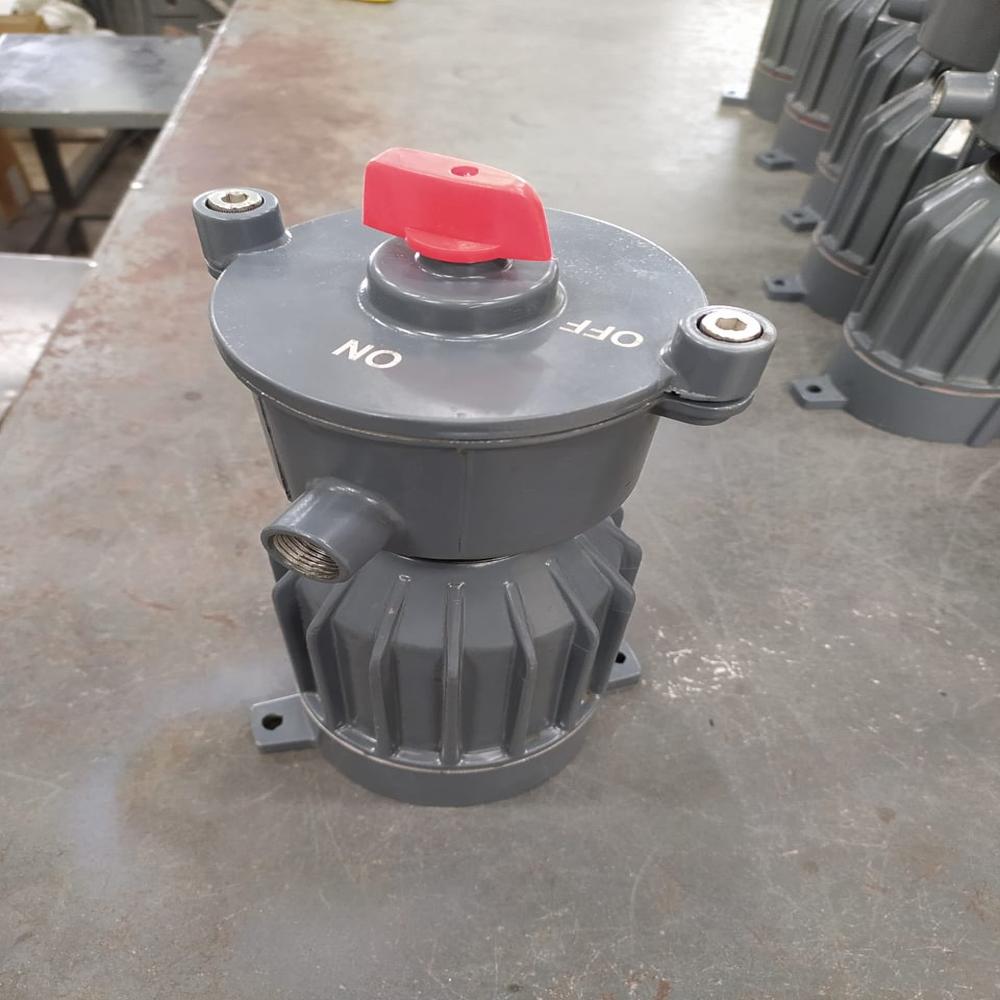

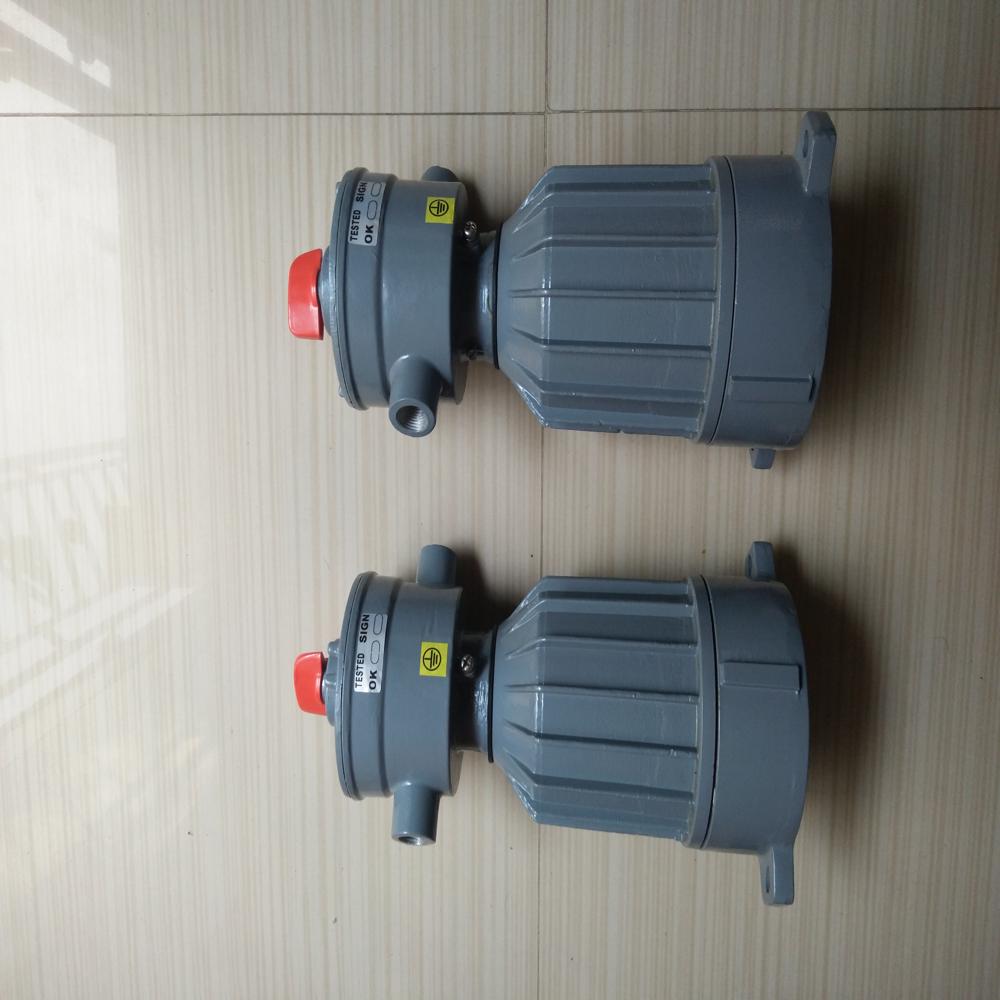

Reactor Vessel Lamp provides reliable lighting for industrial purposes. They are weatherproof, flameproof and heat resistant. As a result, the reactor vessel lamp provides a durable and high quality solution for all industrial lighting requirements. The transparent part of the lamp has heat and impact resistant clear dome type-A toughened glass. With an IP 66 rating, it is suited for use in gas groups IIA & IIB. Models available with on-off type or timer.

Ex-d, Gas Gr. IIA & IIB AS PER IS/IEC 60079-1:2007 & IS/IEC 60079-0:2004

Reliable Safety in Hazardous Environments

Specially built for flameproof and weatherproof operation, this lamp fitting ensures maximum safety in explosive gas atmospheres. An IP65/IP66 rating provides substantial protection from dust, water, and chemicals, making it a trusted component for harsh, risky operational areas in the process industry.

Customizable Installation Options

Installation is made flexible with options for single or double cable entry, top or side mounting, and flanged, threaded, or customized vessel connections. The lamp fitting is designed to accommodate various vessel geometries and specific on-site requirements, ensuring versatile, secure mounting.

Durable, Low-Maintenance Design

Manufactured from corrosion-resistant aluminium alloy with a smooth epoxy powder grey finish, the fitting features a thick body wall (3-5mm) and toughened glass. Its rugged build means high impact resistance and maintenance-free performance, while lamp replacement is straightforward and user-friendly.

FAQ's of Flameproof Reactor Vessel Lamp Fitting:

Q: How is the flameproof vessel lamp fitting installed?

A: The lamp fitting can be top or side mounted as per the order, with options for flanged, threaded, or custom mounting to fit various reactor vessels. It is supplied with mounting hardware and can be installed by a qualified electrician following standard safety procedures.

Q: What types of lamps and wattages are compatible with this fitting?

A: You can use E27 or B22 base lamps, either LED or incandescent, with a maximum wattage of up to 100W. The fitting supports 110V/220V/240V AC voltage as specified, and is suitable for frequencies between 50-60Hz.

Q: When should I use this lamp fitting in my facility?

A: This product is intended for illuminating interiors of reactor vessels located in hazardous areas-specifically Zones 1 and 2, Gas Groups IIA, IIB, and IIC. It is ideal for the chemical, pharmaceutical, and paint industries where explosion risk is present.

Q: What process ensures weatherproof and flameproof protection?

A: Weatherproofing is achieved through high-quality Neoprene or Silicone gaskets, toughened glass (8-12mm thickness), and precise assembly with certified ingress protection (IP65/IP66). The flameproof nature complies with IS/IEC 60079-1 & 60079-7 standards, making it suitable for potentially explosive atmospheres.

Q: Where is external and internal earthing provided on the fitting?

A: Both internal and external earth bolts are integrated into the lamp fitting to ensure safe grounding as per hazardous area regulations, further contributing to operational safety.

Q: How does the lamp fitting improve safety and operational efficiency?

A: Its rugged flameproof design, reliable weatherproofing, and easy lamp replacement help reduce maintenance downtime while maximizing protection. This enables safe, uninterrupted process monitoring in hazardous zones.

Q: What are the connectivity and control features of this lamp fitting?

A: Cable glands (PG13.5/PG16 or as per drawing) are provided for wiring. The lamp fitting can be operated through either a manual or remote switch (switch not included), allowing flexible control to suit process needs.
